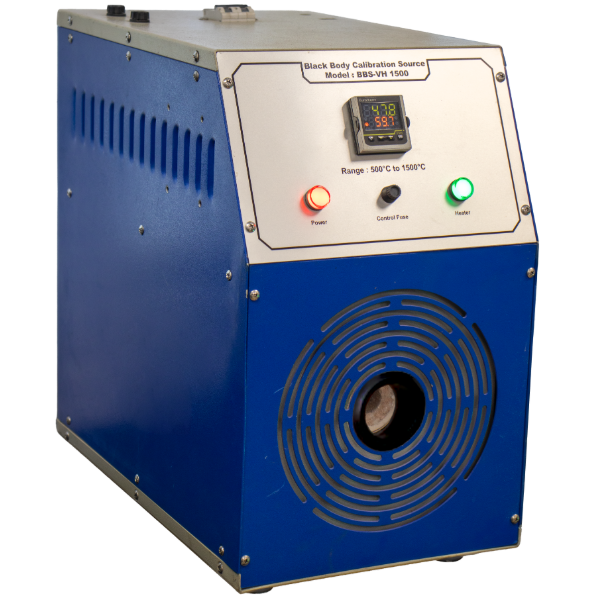

Black Body Calibration Source - Nagman Instruments Consortium

Portable, Table-top

BBS-VH

Compact, Light Weight & Portable
High Emissivity, Wide Aperture
Excellent Accuracy & Stability
Auto-tune PID Controller
Low Power Consumption
Cost-effective – Best value for Money
Computer Interface & Calibration Software – Optional

Specifications

Range: 500°C to 1500°C
Accuracy: Within 0.5% F.S. (Min. 5°C)
Emissivity: 0.98
Aperture Dia: 25 mm
Stability: ±1°C
Resolution: 1°C
Temperature Control: Auto-tune PID Controller
Temperature Readout: °C / °F Selectable
Heating Time (Ambient to max.): 90 Minutes
Stabilization time: 20 Minutes
Power Supply: 230V AC / 50 Hz / 1500 W (approx.)
Housing / Mounting: Portable, Table-Top
Dimensions (L x B x H): 280 x 450 x 470 mm
Weight: 14 Kgs

Std. Inclusions

Basic Instrument
Mains Cable
Spare Fuses
Traceable Calibration Certificate
Instruction Manual

Optional

Computer Interface
“Caltemp” Calibration Software
Contact Thermocouple (to measure cavity temperature)
Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards

Downloads

Click here to download our product catalog
