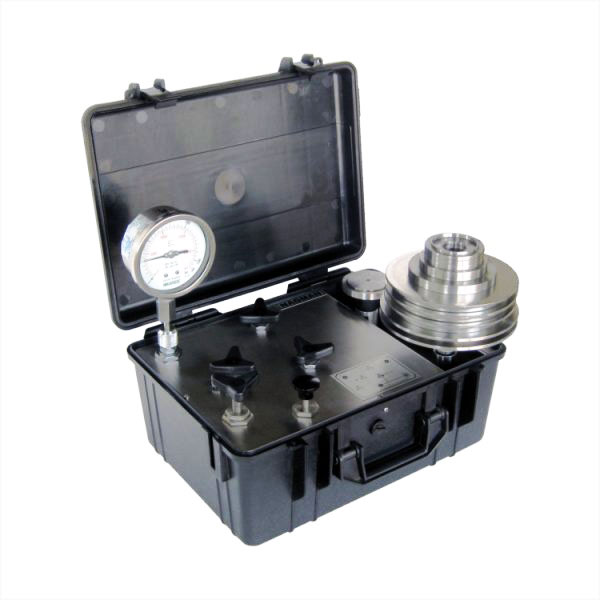

Portable Hydraulic Dead Weight Testers
  •  Ranges : Upto 700 Bar
  • Accuracy : ±0.1% / ±0.05% / ±0.025% / ±0.015% of Reading
  • Single / Dual Piston (varies as per Model)
  • Oil operated
  • Engineering Units : Bar / Kg/Cm2 / PSI
  • Spirit Level
  • Piston Calibrated thro’ “Cross Floating Techniques”
  • Calibrated to Standard Gravity (Customer specified Gravity adjustment optional)
  • Accuracies Traceable to International Standards
  • Mild Steel / Non-Magnetic Stainless Steel Weight Sets
  • Fixed in a Sturdy Mobile Case for use in Field Calibration
  • Range: 35 / 70 / 100 / 160 / 350 / 600 / 700 Bar
  • Piston: Single / Dual  (varies as per Model)  Refer Table 2
  • Accuracy: ±0.1% / ±0.05% / ±0.025% / ±0.015% of Reading
  • Traceability: International Standards – Refer Table 1
  • Weights: Mild Steel / Non-Magnetic Stainless Steel
  • Pressure generation: Thro’ Priming Pump & Screw Ram
  • Standard Corrections: Gravity: 9.80665 m/s2* / Temperature: 20°C / Air Density: 1.2 Kg/Cm2
  • Weight (approx.): Instrument: 12 Kg / Weight Sets: 8 to 33 Kg – Refer Table 2
  • No. of Weights: 12 to 15
  • Instrument Dimensions: 440 x 350 x 200 mm (L x B x H)
  • Operating Fluid: Oil

TABLE1

Model Accuracy PCU Weight Set Certification Remarks
H3000-P ±0.1% of Reading Tungsten Carbide Piston & Matching Cylinder Mild Steel or Non-Magnetic Stainless Steel Overall Accuracy Traceable to ISO/IEC 17025:2017 Accredited Calibration Lab
H6000-P ±0.05% of Reading Tungsten Carbide Piston & Matching Cylinder Non-Magnetic Stainless Steel Overall Accuracy Traceable to ISO/IEC 17025:2017 Accredited Calibration Lab
H6600-P ±0.025% of Reading Tungsten Carbide Piston & Matching Cylinder Non-Magnetic Stainless Steel Overall Accuracy + PCU (Area) + Weights (Mass) Issued by NABL ISO/IEC 17025:2017 Accredited Lab
H6900-P ±0.015% of Reading Tungsten Carbide Piston & Matching Cylinder Non-Magnetic Stainless Steel Overall Accuracy + PCU (Area) + Weights (Mass) Issued by NABL ISO/IEC 17025:2017 Accredited Calibration Lab

TABLE2

Piston Type Piston Model Pressure Ranges
1 / bar 2 / Kg/Cm2 3 / psi
Single SP-35 0.5 to 35 0.5 to 35 10 to 500
Single SP-70 0.5 to 70 0.5 to 70 10 to 1000
Single SP-100 5 to 100 5 to 100 75 to 1500
Single SP-160 5 to 160 5 to 160 75 to 2500
Single SP-350 5 to 350 5 to 350 75 to 5000
Single SP-600 10 to 600 10 to 600 150 to 9000
Single SP-700 10 to 700 10 to 700 150 to 10000
Dual DP-160 1 to 160 1 to 160 15 to 2500
Dual DP-350 1 to 350 1 to 350 15 to 5000
Dual DP-600 1 to 600 1 to 600 15 to 9000
Dual DP-700 1 to 700 1 to 700 15 to 10000
  • Refer relevant Model Datasheet in “Download” Tab
  • Refer relevant Model Datasheet in “Download” Tab

Click here to download Datasheet for ±0.1% Accuracy Model

Click here to download Datasheet for ±0.05% Accuracy Model

Click here to download Datasheet for ±0.025% Accuracy Model

Click here to download Datasheet for ±0.015% Accuracy Model
