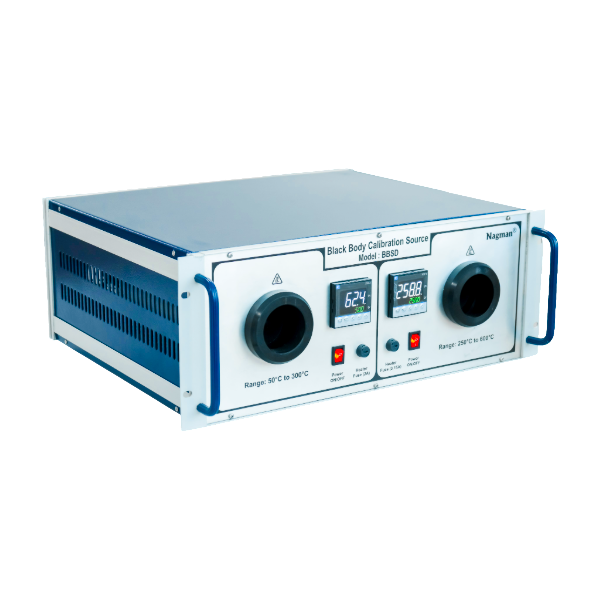

Dual Chamber - Portable, Table-top

BBSD

  • Enables simultaneous measurement of 2 Pyrometers / Quick Measurement in 2 Points over the range
  • Compact, Light Weight, Bench-top & Portable
  • Dual Chamber Ranges : 50 to 300°C & 250 to 600°C
  • Excellent Accuracy & Stability
  • High Emissivity, wide Aperture
  • Auto-tune PID Controller
  • Low Power Consumption
  • Cost effective – Best Value for Money
  • RS-232 Computer Interface – Optional
  • Calibration Management Software – Optional
Models Chamber 1 Chamber 2
Range 50 to 300°C 250 to 600°C
Accuracy Within 0.5% F.S. (Min. 1°C) Within 0.5% F.S. (Min. 2°C)
Emissivity 0.98
Aperture size ∅ 25 mm
Stability ±0.5°C
Resolution 0.1°C 1°C
Temperature Control Auto-tune PID Controller
Heating time (to max.) 45 Minutes
Stabilization time 30 minutes
Temperature Readout °C / °F selectable
Power Supply 230 VAC / 50 Hz
Dimension 450 x 410 x 190 mm (W x D x H)
Weight 14 Kgs
Housing / Mounting Bench-top / Table-top (Portable)
  • Basic Instrument with standard Lid / Probe Holder
  • Mains Cable
  • Spare Fuses
  • Traceable Calibration Certificate
  • Instruction Manual
  • RS-232 Computer Interface
  • “Caltemp” Calibration Software
  • Contact Thermocouple (to measure cavity temperature)
  • Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory
