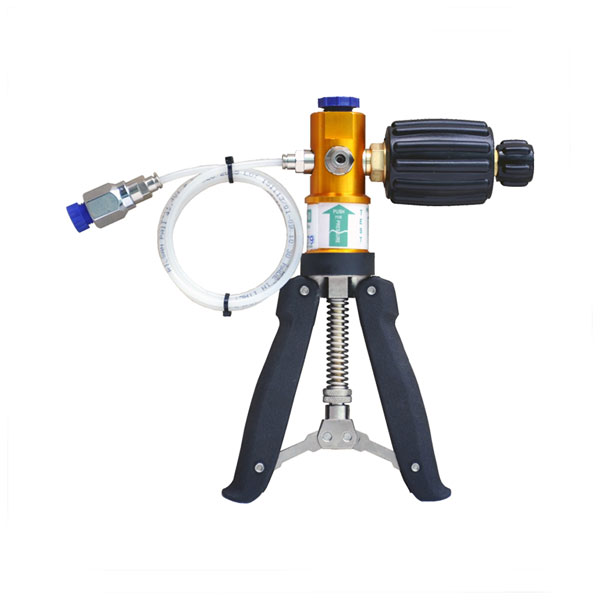

Pneumatic Hand Pumps Vacuum and Low Pressure PHP 60 at best price - Nagman

Pneumatic

PHP 60

Compact, Light Weight, Hand Operated
Combined Vacuum & Pressure Pump with Pressure/Vacuum Changeover option
Fine Adjustment Vernier to realize upto 1 mbar Resolution/Sensitivity
Very Low Leakage rate
Flexible Nylon Hose (1 Meter) with Swivel Adaptor to connect devices under test

Description

Ideal tool for checking & Calibration of Pneumatic Digital Indicators, Manometers, Pressure Transducers / Transmitters, Pneumatic Loops etc.
Generates (Pneumatic) Pressure / Vacuum thro’ convenient Scissor action / minimum effort, Fine Adjustment Vernier.

Specifications

Range: -0.9 bar Vacuum to 60 bar Pressure
Medium: Air
Sensitivity / Resolution: Upto 1 mbar
Gauge / Indicator Connection Port: 3/8” (F) BSP
Test Connection Port: 1/4″ (F) BSP
Instrument Dimension: 240 x 160 x 65 mm (H x W x D)
Instrument Weight (approx.): 1 Kg

Std. Inclusions

Basic Pump
Nylon Hose (1 Meter)
Set of Seals
Conformance Certificate
Instruction Manual

Optional

Carrying Case (Soft)
Analog / Digital Pressure Gauges
Quick Connector
Spare Seals Kit
Set of Adaptors
BSP:
⅛” BSP(F) X ¼” BSP (M)
½” BSP(F) X ¼” BSP (M)
⅜” BSP(F) X ¼” BSP (M)
NPT:
⅛” NPT(F) X ¼” BSP (M)
¼” NPT(F) X ¼” BSP (M)
½” NPT(F) X ¼” BSP (M)
⅜” NPT(F) X ¼” BSP (M)

Downloads

Click here to download our product catalog

Click here to download our product Manual
