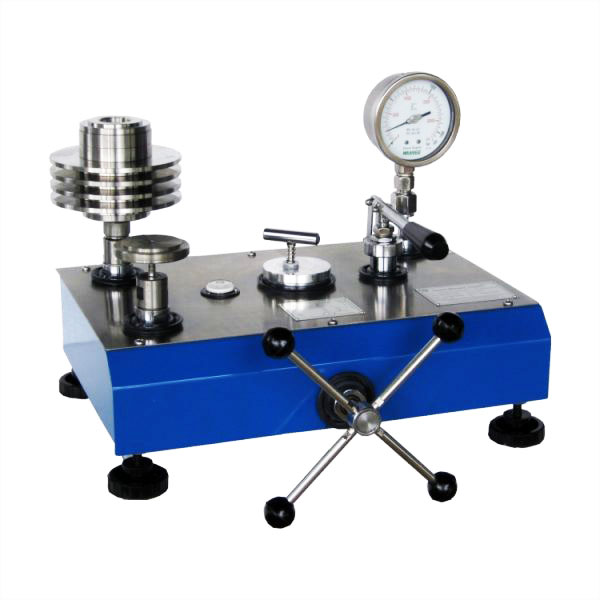

Hydraulic - Bench-top / Table-top Model

H6600
  • Ranges: Up to 700 Bar
  • Accuracy: ±0.025% of Reading
  • Single / Dual Piston
  • Oil operated
  • Engineering Units : Bar / Kg/Cm2 / PSI.
  • Adjustable Foot & Spirit Level
  • Piston Calibrated thro’ “Cross Floating Techniques”
  • Calibrated to Standard Gravity (Optional: Calibration to Local Gravity as per Customer’s requirement)
  • Accuracies Traceable to International Standards
  • Non-Magnetic Stainless Steel Weight Sets
  •  Calibration Certificate – for overall Accuracy + PCU (Area) + Weights (Mass) from NABL Accredited Lab – as per ISO/IEC 17025:2005
  • DWTCal Calibration Software – optional
  • Range: 35 / 70 / 100 / 160 / 350 / 600 / 700 Bar
  • Piston: Single / Dual – Refer Table 2
  • Standard Accuracy: ±0.025% of Reading
  • Traceability: International Standards – Refer Table 1
  • Weights: Mild Steel / Non-Magnetic Stainless Steel
  • Pressure generation: Thro’ Priming Pump & Screw Ram
  • Standard Corrections: Gravity: 9.80665 m/s2* / Temperature: 20°C / Air Density: 1.2 Kg/Cm2
  • Weight (approx.): Instrument: 19 Kg / Weight Sets: 8 to 33 Kg – Refer Table 2
  • No. of Weights: 12 to 15
  • Instrument Dimensions: 530 x 325 x 230 mm (L x W x D)
  • Operating Fluid: Oil
  • DWTCal Software: Optional

TABLE1

Model Accuracy PCU Weight Set Certification Remarks
H6600 ±0.025% of Reading Tungsten Carbide Piston & Matching Hardened Cylinder Non-Magnetic Stainless Steel Overall Accuracy + PCU (Area) + Weights (Mass) Traceable to ISO/IEC 17025:2005 Accredited Calibration Lab

TABLE2

Piston Type Piston Model Pressure Ranges
1 / Bar 2 / Kg/Cm2 3 / PSI
Single SP-35 0.5 to 35 0.5 to 35 10 to 500
Single SP-70 0.5 to 70 0.5 to 70 10 to 1000
Single SP-100 5 to 100 5 to 100 75 to 1500
Single SP-160 5 to 160 5 to 160 75 to 2500
Single SP-350 5 to 350 5 to 350 75 to 5000
Single SP-600 10 to 600 10 to 600 150 to 9000
Single SP-700 10 to 700 10 to 700 150 to 10000
Dual DP-160 1 to 160 1 to 160 15 to 2500
Dual DP-350 1 to 350 1 to 350 15 to 5000
Dual DP-600 1 to 600 1 to 600 15 to 9000
Dual DP-700 1 to 700 1 to 700 15 to 10000
  • Basic Instrument
  • Calibrated M.S. / S.S Weight Sets – Refer Table 1 & 2
  • Full set of Adaptors consisting of 1/8”, 1/4″, 3/8”, 1/2″ BSP (Set of NPT Adaptors available on request)
  • Spirit Level, Pointer Puller / Punch, Set of Spanners & Screw Driver
  • Operating Fluid (500 ml)
  • ‘O’ Ring & Seals
  • Dust Cover, Wooden Carrying Case (for Weight Sets)
  • Calibration Certificate from NABL Accredited Laboratory (as per ISO/IEC 17025:2005) – Refer Table 1
  • Instruction Manual
  • Right angled Adaptor / Two Gauge Adaptor
  • Conversion Weight Sets to convert from one unit of Pressure to another
  • Incremental Weight Sets for smaller increments of Pressure
  • DWTCal Calibration Software
  • Motorized Version

Click here to download our product catalog

Click here to download our product Manual
