Portable/Benchtop

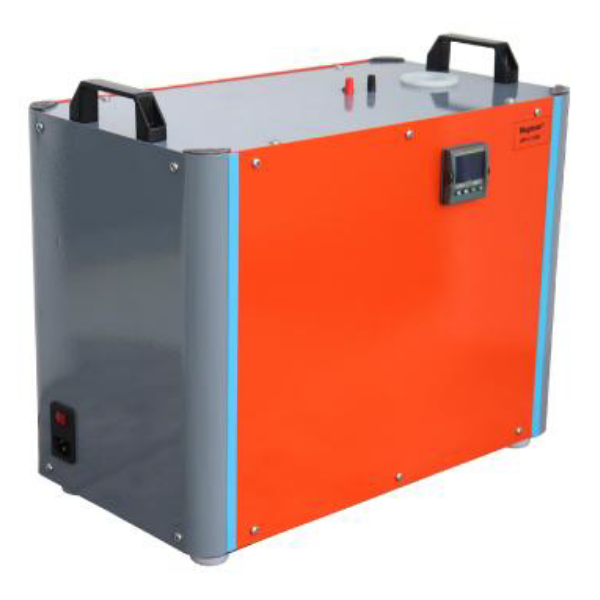

UNFC-100E

  • Advanced – PID-Controller
  • Heavy Duty Portable / Bench-top Model
  • High Resolution & Stability
  • Switch Test Contact Measurement
  • Multi-hole Thermowell Inserts
  • Range -100°C to +25°C
  • Resolution
    • 0.01°C (+25 to -19.99°C)
    • 0.1°C (-20°C from -100°C)
  • Accuracy ±0.3°C
  • Stability ±0.05°C
  • Stabilisation Time 15 Minutes
  • Temperature Readout °C / °F Selectable
  • Well Diameter 30 mm
  • Immersion Depth 150 mm
  • Heating Time (-100 to 25°C) 50 Minutes approx.
  • Cooling Time
    • 25 to -60°C 40 Minutes approx.
    • -60°C to -100°C 50 Minutes approx.
  • Switch Test facility Provided
  • Interchangeable Thermowells
    • Multihole to suit 2 x 6.5 mm & 1 x 8.5 mm
      Probes.
    • Other Sizes available as optional
  • Housing / Mounting Bench-top
  • Power Supply 90 ~ 220V AC, 50/60 Hz
  • Instrument Dimensions (L x W x H) 439 x 240 x 358 mm
  • Instrument Weight 15 Kgs. (approx.)
  • Basic Instrument
  • Test Leads
  • Mains Cable
  • Multihole Insertion Tubes to suit 2 x 6.5 mm & 1 x 8.5 mm
    probes
  • Tool for Insertion Tubes
  • Spare Fuses
  • Calibration Certificates are issued in Accordance with our
    Scope as granted by NABL per ISO/IEC 17025:2017
    Standards
  • Instruction Manual
  •  Carrying Case
  • Additional Thermowells/Insertion Tubes & Multihole – Contact us

Click here to download our product catalog

Other Products
Metcal-40-PP-1-600x600

Metrological Dry Block Sub-Zero Temperature Calibrator -METCAL40

View Product

MTC-40-PP-1-600x600

Universal Dry Block
Sub-Zero Temperature Calibrator – MTC 40

View Product

ps2

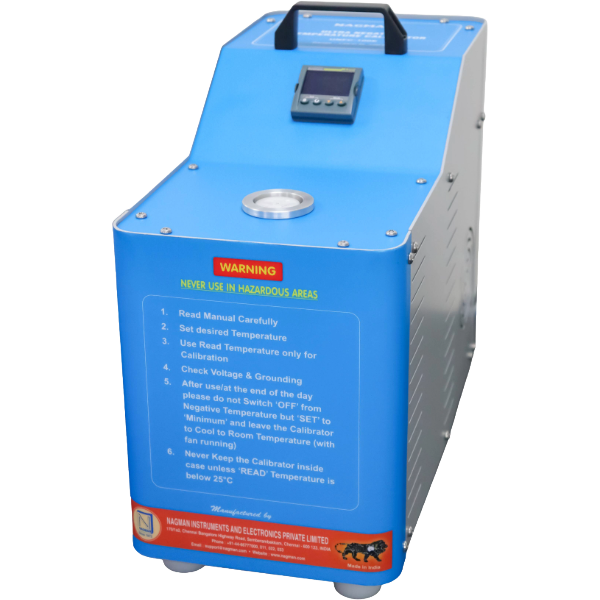

Sub-Zero Temperature Dry Block Calibrator – R40
