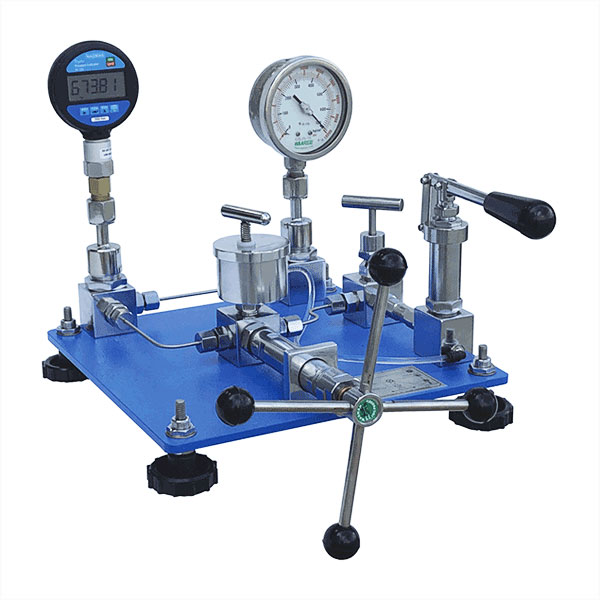

Hydraulic - Portable / Bench-top Models

GCL Series
  • Budget Solutions
  • Very Low Maintenance Cost
  • Compact & Easy to carry for Lab & Field use
  • Priming Pump with Fine Adjustment Vernier Incremental Pressure generation
  • Adjustable Foot

Screw Pumps: Useful for checking Pressure Measuring Devices / Master Devices / Test Gauges

  • Ranges: 0 to 250 / 350 (GCL-SP Series). 0 to 700 / 1000 bar (GCH-SP Series)
  • Type: Screw Pump
  • Pressure generation: Priming Pump for initial pressures & Screw RAM Pump for high pressures
  • Test Port Connection: 1/2″ BSP (F) Swivel
  • Medium: Oil (Optional : Water) #
  • Dimensions: 370 x 410 x 230 mm (L x D x H)
  • Weight: 14 Kg.
  • Basic Instrument
  • Hydraulic Fluid (500 ml)
  • Set of Seals
  • Conformance Certificate
  • Instruction Manual
  • Analog or Digital Master Gauges
  • Distilled Water #
  • Set of Adaptors
    BSP :
    ⅛” BSP(F) X ½” BSP (M)
    ¼” BSP(F) X ½” BSP (M)
    ⅜” BSP(F) X ½” BSP (M)
    NPT :
    ⅛” NPT(F) X ½” BSP (M)
    ¼” NPT(F) X ½” BSP (M)
    ½” NPT(F) X ½” BSP (M)
    ⅜” NPT(F) X ½” BSP (M)
  • Right Angled & Two Gauge Adaptors

Click here to download the catalog

Click here to download the product Manual

Other Products

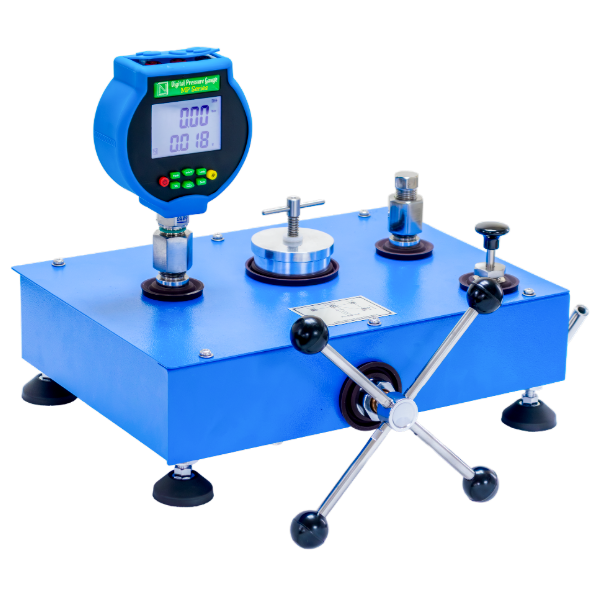

GCH Series
