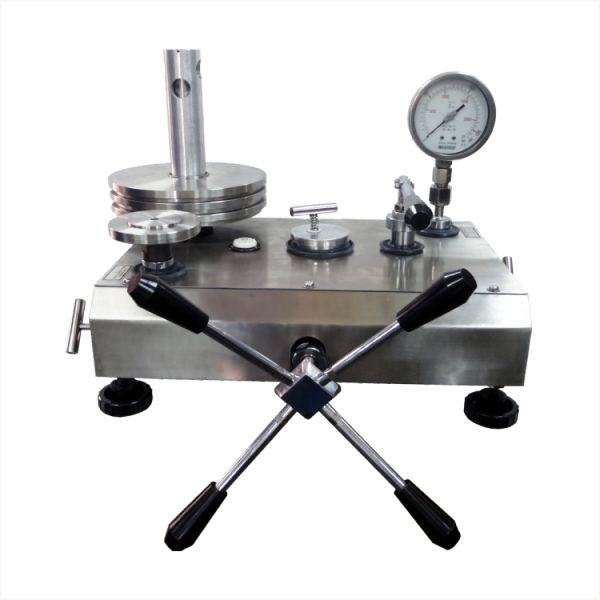

Hydraulic - Bench-top / Table-top Model

H6900N
  • Ranges: 1000 / 1100 / 1200 Bar
  • Accuracy: ±0.015% / ±0.01% of Reading
  • Dual Piston
  • Oil operated
  • Engineering Units : Bar / Kg/Cm2 / PSI (Kpa & Mpa also available).
  • Adjustable Foot & Spirit Level
  • Piston Calibrated thro’ “Cross Floating Techniques”
  • Calibrated to Standard Gravity (Optional: Calibration to Local Gravity as per Customer’s requirement)
  • Accuracies Traceable to International Standards
  • Non-Magnetic Stainless Steel Weight Sets
  • Range: 1000 / 1100 / 1200 Bar
  • Piston: Dual – Refer Table 2
  • Standard Accuracy: ±0.015% / ±0.01% of Reading
  • Traceability: International Standards – Refer Table 1
  • Weights: Non-Magnetic Stainless Steel
  • Pressure generation: Thro’ Priming Pump & Screw Ram
  • Standard Corrections: Gravity: 9.80665 m/s2* / Temperature: 20°C / Air Density: 1.2 Kg/Cm2
  • Weight (approx.): Instrument: 19 Kg / Weight Sets: 8 to 33 Kg – Refer Table 2
  • No. of Weights: 12 to 15
  • Instrument Dimensions: 530 x 325 x 230 mm (L x W x D)
  • Operating Fluid: Oil
  • DWTCal Software: Optional

TABLE1

Model Accuracy PCU Weight Set Certification Remarks
H6900N ±0.015% of Reading Hardened Special Steel Piston & & Matching Cylinder Non-Magnetic Stainless Steel Overall Accuracy From ISO/IEC 17025:2005 Accredited Calibration Lab
H6990N ±0.01% of Reading

TABLE2

Piston Type Piston Model Pressure Ranges
1 / Bar 2 / Kg/Cm2 3 / PSI
Dual DP-1000 1 to 1000 1 to 1000 15 to 15000
Dual DP-1200 1 to 1200 1 to 1200 15 to 18000
  • Basic Instrument
  • Calibrated Stainless Steel Weight Sets Refer Table 1 & 2
  • Full set of Adaptors consisting of 1/8”, 1/4″, 3/8”, 1/2″ BSP (Set of NPT Adaptors available on request)
  • Operating Fluid (500 ml)
  • Spirit Level, Pointer Puller / Punch, Set of Spanners & Screw Driver
  • Wooden Carrying Case (for Weight Sets)
  • ‘O’ Ring & Seals
  • DWTCal Calibration Software
  • Calibration Certificate from NABL Accredited Laboratory (as per ISO/IEC 17025:2005) – Refer Table 1
  • Instruction Manual
  • Right angled Adaptor / Two Gauge Adaptor
  • Conversion Weight Sets to convert from one unit of Pressure to another
  • Incremental Weight Sets for smaller increments of Pressure
