Nagman Thermocouple Calibrator India

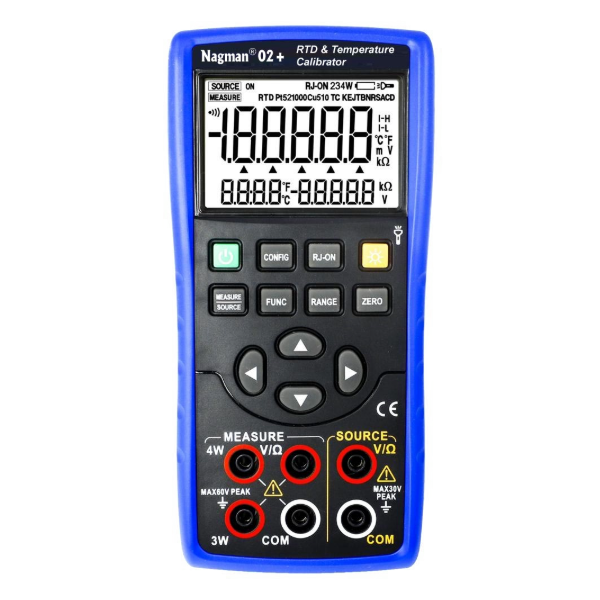

Nagman® 02+

Input	Range	Input range	Resolution	Accuracy	Remarks
Voltage (DC)	100 mV	-10 to 110 mV	10 mV	±0.05% measured value ± 30 mV	Input Resistance 1MW
Thermocouple	R	-40 to 1760°C	1°C	±0.05% measured value ±3°C (<100°C) ±0.05% measured value ±2°C (>100°C)	Input Resistance 1MW
	S	-20 to 1760°C	1°C
	B	400 to 1800°C	1°C	±0.05% measured value ±3°C (400 to 600°C) ±0.05% measured value ±2°C (>600°C)
	E	-200 to 1000°C	0.1°C	±0.05% measured value ±2°C (< -100°C) ±0.05% measured value ±1°C (> -100°C)
	K	-200 to 1370°C	0.1°C
	J	-200 to 1200°C	0.1°C
	T	-200 to 400°C	0.1°C
	N	-200 to 1300°C	0.1°C

Output	Range	Output range	Resolution	Accuracy	Remarks
Voltage (DC)	100 mV (Low)	-10.00 to 110.00 mV	0.01 mV	±0.05% set value ±30 mV	Max. output current ±2 mA
Voltage (DC)	1V (High)	-0.10 to 1.10 V	0.1 mV	±0.05% set value ±0.3 mV	Max. output current ±2 mA
Thermocouple	R	-40 to 1760°C	1°C	±0.05% set value ±3°C (<100°C) ±0.05% set value ±2°C (>100°C)	By using ITS-90 temperature scale
	S	-20 to 1760°C	1°C
	B	400 to 1800°C	1°C	±0.05% set value ±3°C (400 to 600°C) ±0.05% set value ±2°C (>600°C)
	E	-200 to 1000°C	0.1°C	±0.05% set value ±2°C (<100°C) ±0.05% set value ±1°C (>100°C)
	K	-200 to 1370°C	0.1°C
	J	-200 to 1200°C	0.1°C
	T	-200 to 400°C	0.1°C
	N	-200 to 1300°C	0.1°C
