Portable/Benchtop

NICAL

Informative Color Display with feather touch
Heavy Duty Portable / Bench-top Model
Rugged Field Use & for Calibration at Site
Auto-tune PID Control
Stability Indicator
Switch Test facility
Fast and Reliable
Improved Accuracy, Resolution & Stability
Interchangeable Thermowell Inserts, Single / Multihole

Description

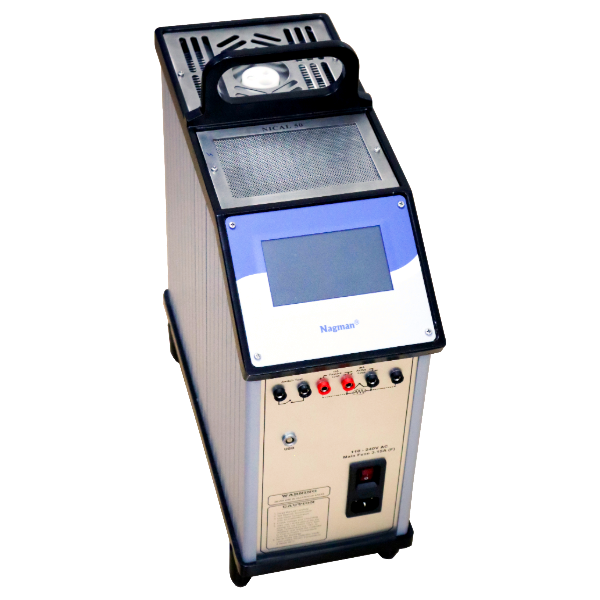

Precision Dry Block Calibrator with Multihole Interchangeable Thermowells

Covering Wide Temperature Ranges : -25°C to 150°C (NICAL 50 Basic)

Full color display makes user easy to read.
The main temperature indications are SET, READ,
Stability Status switch test, Over protection (Temperature)

Operating Range: -25°C to 150°C @ Tamb. 22°C
Resolution: 0.01°C
Accuracy: ± 0.2°C
Stability (Stable Room Temperature): ± 0.01°C
Radial Uniformity: ± 0.01°C
Axial uniformity: ± 0.2°C (40 mm)
Heating Time: 33 to 140°C — 20 min
Cooling Time: 33 to-30°C — 25 min
Time to Stability (typical): 7 min
Well Diameter x Depth: Ø30mm x 150mm
Weight: 9 Kg
Size (L x D x H): 160 x 365 x 450 mm
Computer Interface: USB Interface
Mains Power: 230V AC / 50Hz

Std. Inclusions

Basic Instrument
Test Leads
Mains Cable
Multi hole Insertion Tubes (to suit)
a. (1 x ¼”) (1x 1/8”) – 1 No.
b. (1 x ¼”) (1x 3/8”) – 1 No.
Tool for Insertion Tubes
Spare Fuses
USB Interface cable
Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
Instruction Manual
Carrying Case

Downloads

Click here to download our product catalog
