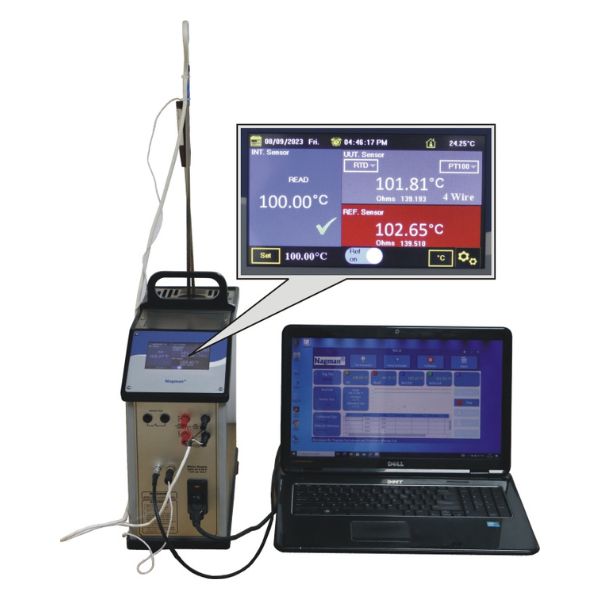

Covering Wide Temperature Ranges : -30°C to 1200°C (NICAL 50 / 650 / 1200)
Measuring Accuracy : ±0.025% of rdg.
| MODEL | NICAL 50 | NICAL 650 | NICAL 1200 |
|---|---|---|---|
| Operating Range | -30°C to 140°C | 50°C to 650°C | 150°C to 1200°C |
| Resolution | 0.01°C | 0.01°C | 0.1°C |
| Accuracy | ± 0.2°C | ± 0.4°C | ± 2°C |
| Stability | ± 0.02°C | ± 0.04°C | ± 0.2°C |
| Radial Uniformity | ± 0.02°C | ± 0.04°C | ± 0.2°C |
| Axial uniformity | ± 0.2°C (40 mm) | ± 0.4°C(40 mm) | ± 0.6°C (20 mm) |
| Heating Time | 33 to 140°C — 20 min | 50 to 650°C—- 30min | 200 to1200°C—-1.5h |
| Cooling Time | 33 to-30°C — 25 min | 650 to 100°C—-75min | 1200 to 200°C—-3h |
| Time to Stability (typical) | 7 min | 15 min | 15 min |
| Well Diameter x Depth | Ø30mm x 150mm | Ø30mm x 150mm | Ø30mm x 105 mm |
| Weight | 9 Kg | 11 Kg | 12.6 Kg |
| Size (L x D x H) | 160 x 365 x 450 mm | ||
| Computer Interface | USB Interface | ||
| Mains Power | 230V AC 50HZ – Optional 115V AC , 60HZ | ||
| Type | Range | Resolution | Accuracy | Type | Range | Resolution | Accuracy | |
| mV (Low) | 0 to 200 | 0.001 | ±(0.025%+2µV) | TC Type J | -100 to 1200 | 0.1 | ±(0.025%+0.1°C) | |
| mV (High) | 0 to 2000 | 0.01 | ±(0.025%+10µV) | TC Type K | -60 to 1260 | 0.1 | ±(0.025%+0.1°C) | |
| Volts | 0 to 20 | 0.0001 | ±(0.025%+0.08mV) | TC Type R | 150 to 1700 | 0.1 | ±(0.025%+0.2°C) | |
| mA | 0 to 25 | 0.0001 | ±(0.025%+0.4µA) | TC Type S | 170 to 1700 | 0.1 | ±(0.025%+0.2°C) | |
| Ohms | 0 to 500 | 0.001 | ±(0.025%+12mΩ) | TC Type N | 0 to 1300 | 0.1 | ±(0.025%+0.1°C) | |
| KOhms | 0 to 5 | 0.00001 | ±(0.025%+120mΩ) | TC Type B | 920 to 1820 | 0.1 | ±(0.025%+0.2°C) | |
| RTD Pt100 | -100 to 800 | 0.01 | ±(0.025%+0.1°C) | TC Type T | 0 to 400 | 0.1 | ±(0.025%+0.1°C) | |
| RTD Pt200 | -100 to 600 | 0.01 | ±(0.025%+0.15°C) | |||||
| RTD Pt500 | -100 to 530 | 0.01 | ±(0.025%+0.1°C) | |||||
| RTD Pt1000 | -100 to 650 | 0.01 | ±(0.025%+0.1°C) |
