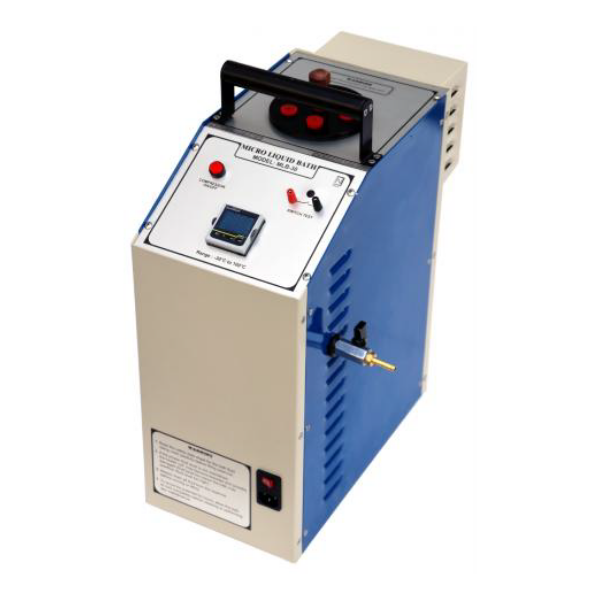

Micro Liquid Bath. HomeDry Block Temperature CalibratorsStirred BathsMicro Liquid Bath. Enquire Now. Portable / Benchtop Model. MLB-30.

Portable / Benchtop Model

MLB-30

Compact, Portable / Bench-top Model
No Problems of Fitment / Immersion
Auto-tune PID Controller
Stirrer to ensure Temperature uniformity
(Oil) Spill proof Transport Lid
Overflow Outlet Provision
Computer Interface & Calibration Software – Optional

Description

Ideal for Liquid-in-Glass Thermometers & Bi-Metal Thermometers / RTD Calibration
Site Calibration of Multiple / Multi-type / ODD Shaped Sensors (Lid / Probe holder can be designed to suit)
Stability & Precision of a Liquid Bath, Compact Size & Portability of a Dry Block Calibrator

Specifications

Range: -25°C to 100°C
Resolution: 0.1°C
Accuracy: ±0.6°C
Stability: ±0.2°C
Stabilisation Time: 20 Minutes
Temperature Control: Auto-tune PID Controller
Temperature Readout: °C / °F Selectable
Working Chamber Dia: 75 mm
Working Chamber Depth: 150 mm
Chamber Capacity: 1500 ml
Medium
-30°C to 50°C : Methanol **
50°C to 100°C : Special Silicon Oil
Heating Time (Ambient to max.) 15 Minutes (approx.)
Cooling Time (0 to -30°C): 40 Minutes (approx.)
Power Supply / Consumption: 230V AC / 50 Hz / 600 W
Housing / Mounting: Bench-top
Instrument Dimensions (W x D x H): 205 x 365 x 480 mm

Std. Inclusions

Basic Instrument with standard Lid / Probe Holder
Mains Cable
Spare Fuses
Traceable Calibration Certificate
Instruction Manual
Methanol ** (Customer scope, to be sourced locally)

Optional

Computer Interface
“Caltemp” Calibration Software
Lid / Probe Holder – custom designed to suit
115V AC / 60 Hz Model
Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards

Downloads

Click here to download our product catalog
