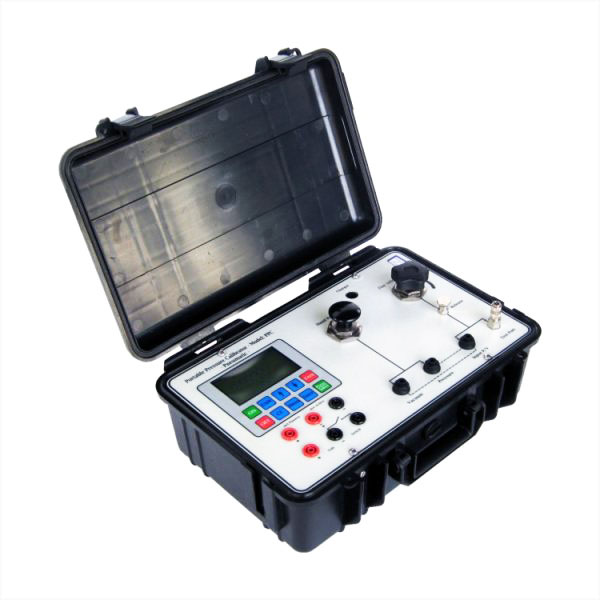

Portable Pressure Calibrator

Ideal Lab/Site Tool for checking & Calibration of Low Ranges of Pressure/Differential Pressure Gauges/Transmitters/Indicators, Pneumatic Receiver Gauges, Control Valves, Pressure Transducers/Loops etc.- in Industrial & Marine Applications.

• Range: -0.85 to 2 / 7 / 10 / 20 bar
• Accuracy: ±0.05% F.S.
• Temperature Compensation: 0 to 50°C (Automatic)
• Display Resolution: Minimum 5 digits
• Display: Large Graphic Display
• Engineering Units (12): Kg/cm2, bar, mbar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa
• mA Input: 50 mA (Active Loop) & 25 mA (Passive Loop)
• Volt Input: 0 to 30V DC
• Resolution for mA & Volt: 0.001
• Pressure Switch Test: Maximum 5V DC (approx.)
• Over Pressure Alarm: 120% FS (Audio/Visual)
• Instrument Dimension: 2, 7, 10 bar Models   : 330 x 235 x 125 mm (Lx B x H), 20 bar Model : 330 x 235 x 200 mm (Lx B x H)
• Instrument Weight (approx.): 2, 7, 10 bar Models: 4 Kg.; 20 bar Model: 6 Kg.
