Comparison Testers GCH Series - Nagman Instruments Consortium

Hydraulic - Portable / Bench-top Models

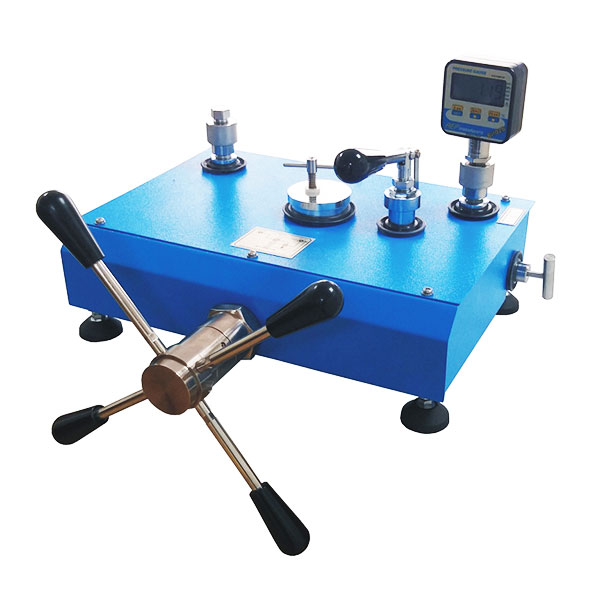

GCH Series

Budget Solutions
Very Low Maintenance Cost
Compact & Easy to carry for Lab & Field use
Priming Pump with Fine Adjustment Vernier for Incremental Pressure generation
Adjustable Foot

Specifications

Screw Pumps: Useful for checking Pressure Measuring Devices / Master Devices / Test Gauges

Ranges: 0 to 1200 / 1400 / 1700 / 2000 bar
Type: Screw Pump
Pressure generation: Priming Pump for initial pressures & Screw RAM Pump for high pressures
Test Port Connection: ½” BSP (F) Swivel
Medium: Oil (Optional : Water) #
Dimensions: 530 x 480 x 230 mm (L x D x H)
Weight: 19 Kg.

Std. Inclusions

Basic Instrument
Hydraulic Fluid (500 ml)
Set of Seals
Conformance Certificate
Instruction Manual

Optional

Analog or Digital Master Gauges
Distilled Water #
Set of Adaptors
BSP :
⅛” BSP(F) X ½” BSP (M)
¼” BSP(F) X ½” BSP (M)
⅜” BSP(F) X ½” BSP (M)
NPT :
⅛” NPT(F) X ½” BSP (M)
¼” NPT(F) X ½” BSP (M)
½” NPT(F) X ½” BSP (M)
⅜” NPT(F) X ½” BSP (M)
Right Angled & Two Gauge Adaptors

Downloads

Click here to download the catalog

Click here to download the product manual

Other Products

GCL Series

GCL Series (Hydraulic)

For checking Medium Pressure Measuring Devices / Master Devices / Test Gauges

PCP Series

PCP Series (Pneumatic)

For checking Low Pressure Measuring Devices / Master Devices / Vacuum generation
