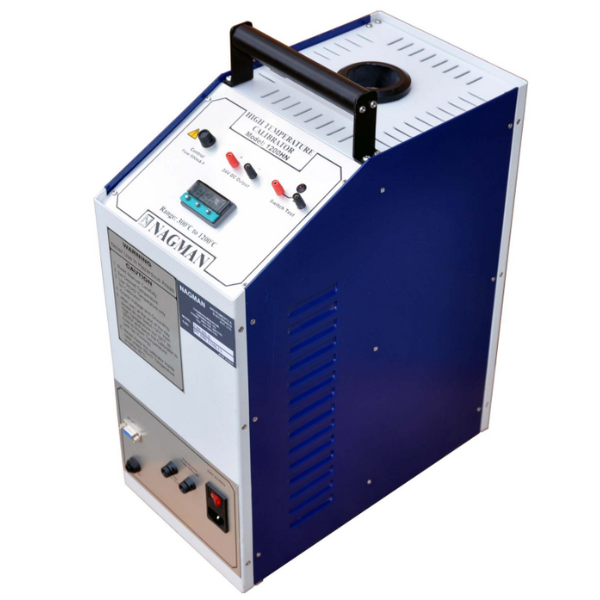

Semi-Portable

1200 HN
  • Cost effective High Temperature Source (Max.: 1200°C)
  • Multihole / Interchangeable (Thermowell) Inserts to suit
  • High Stability & Accuracy
  • Auto-tune PID Control
  • Forced Air Cooling provision
  • Computer Interface
  • “Caltemp” Calibration Software – Optional
    *Improved Accuracies achieved thro’ Comparison Techniques
  • Ideal for Steel, Glass, Metallurgical Industries, Cement Plants, Refineries, Fertilizer Plants, Thermal Power Stations etc.
  • Stable High Temperature Source (1200°C) for Calibration of Multiple (upto 6) Sensors at High Temperature.
  • Range: 250°C to 1200°C
  • Resolution: 0.1°C upto 999.9; 1°C above 999.9
  • Accuracy: Better than ±2.5°C
  • Stability: Better than ±0.5°C (below 600°C)
  • Stabilisation Time: 20 Minutes (above 500°C) (approx.)
  • Well Diameter: 45 mm
  • Immersion Depth: 150 mm
  • Heating Time (to max) approx: 90 Minutes
  • Cooling Time (with well, with forced air cooling) (1200°C to 100°C): 260 Minutes approx.
  • Multihole Thermowells: 4 x 7 mm + 3 x 9 mm or to suit
  • Switch Test facility / Supply: Provided / 5 VDC (open)
  • Power Supply / Consumption: 230V AC / 50 Hz / 2700 W
  • Temperature Control: Auto-tune PID Control
  • Forced Air Cooling **: Provision available
  • Transmitter Power Supply: 24V DC
  • Instrument Dimensions (W x D x H): 210 x 365 x 480 mm
  • Instrument Weight: 16 Kgs

** Dry Compressed Air required (@ 7 bar)

Consult us for Special Heavy Duty Model with Dry Block 70 mm Dia & Immersion Depth 250 mm to accommodate Multiple Inserts at a time & an Interchangeable Thermowell.

Ideal for calibration of longer & bulky Temperature Probes / Assemblies – consult us with specific requirement

  • Basic Instrument
  • Cable for Thermostat Switch Test
  • Mains Cable
  • Insertion Tube – Multihole
  • Tool for Insertion Tube
  • Spare Fuses
  • ¼” BSP (F) Hose Adaptor with 6 mm Hose (1.5 Meter Length)
  • Computer Interface
  • Traceable Calibration Certificate
  • Instruction Manual
  • Digital Temperature Indicator
  • Interchangeable / Single Hole Thermowells – other sizes
  • Reference Thermocouple
  • “Caltemp” Calibration Software
  • Power Supply 110V AC, 60 Hz
  • Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
