Portable/Benchtop

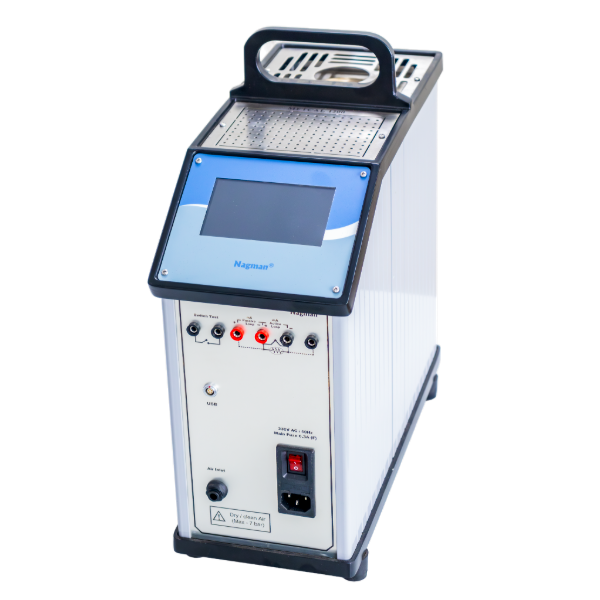

Metcal 1200
  • Advanced – Micro-controller based Technology
  • Heavy Duty Portable / Bench-top Model
  • High Accuracy, Resolution & Stability
  • 128 x 64 Graphic Display
  • Measurement Capability for TC, RTD, mV / mA / V & Resistance Signals
  • Touch Membrane Keypad
  • Switch Test Contact Measurement
  • Single / Multi-hole Thermowell Inserts
  • Computer Interface & Calibration Software
  • Count down timer (Shows when unit is stable)
  • Stability Indicator
  • Precision Dry Block Calibrator with Multihole Interchangeable Thermowells
  • Ideal for quick / fast Site Calibration of RTDs / TCs / Bi-Metal Thermometers, Temperature Switches / Indicators etc. in Industrial & Marine Applications
  • Measuring Accuracy : ±0.025% of rdg.
  • High Accuracy, Resolution & Stability with Measurement Capability for mV / V / mA, Resistance TC (ISA Types : J, K, R, S, N, B, T), RTD (Pt100, Pt200, Pt500, Pt1000 : IEC Standard) Signals
  • Range 150°C to 1200°C
  • Resolution 0.1°C
  • Accuracy ±2°C
  • Stability ±0.3°C
  • Stabilisation Time 15 Minutes
  • Temperature Readout °C / °F Selectable
  • Well Diameter 30 mm
  • Immersion Depth 105 mm
  • Heating Time (100 to 800°C) 30 Minutes approx.
  • Heating Time (800 to 1200°C) 60 Minutes approx.
  • Cooling Time (1200 to 800°C) 30 Minutes approx.
  • Cooling Time (800 to 200°C) 120 Minutes approx.
  • Switch Test facility Provided
  • Interchangeable Thermowells Multihole to suit (8.5 mm x 2) + (6.5 mm x 1) Probes
  • Housing / Mounting Bench-top
  • Power Supply / Consumption 230V AC, 50 Hz – 600 W
  • Instrument Dimensions (L x D x H) 160 x 365 x 450 mm
  • Instrument Weight (approx.) 11.6 Kg.
  • Measurement Capability Thermocouples ISA Types J, K, R, S, N, B, T RTD Pt100, 200, 500, 1000 IEC Std.
    mA 0 to 25 mA mV 0 to 100 / 1000 mV
    Volt 0 to 10 V Resistance 0 to 500Ω / 3.5 KΩ
Measurement: Range, Resolution & Accuracy
Type Range Resolution Accuracy Type Range Resolution Accuracy
mV (Low) 0 to 100 0.001 ±(0.025%+2µV) TC Type J -100 to 1200 0.1 ±(0.025%+0.1°C)
mV (High) 0 to 1000 0.01 ±(0.025%+10µV) TC Type K -60 to 1260 0.1 ±(0.025%+0.1°C)
Volts 0 to 10 0.0001 ±(0.025%+0.08mV) TC Type R 150 to 1700 0.1 ±(0.025%+0.2°C)
mA 0 to 25 0.0001 ±(0.025%+0.4µA) TC Type S 170 to 1700 0.1 ±(0.025%+0.2°C)
Ohms 0 to 500 0.001 ±(0.025%+12mΩ) TC Type N 0 to 1300 0.1 ±(0.025%+0.1°C)
KOhms 0 to 3.5 0.00001 ±(0.025%+120mΩ) TC Type B 920 to 1820 0.1 ±(0.025%+0.2°C)
RTD Pt100 -100 to 800 0.01 ±(0.025%+0.1°C) TC Type T 0 to 400 0.1 ±(0.025%+0.1°C)
RTD Pt200 -100 to 600 0.1 ±(0.025%+0.15°C)
RTD Pt500 -100 to 530 0.1 ±(0.025%+0.1°C)
RTD Pt1000 -100 to 650 0.01 ±(0.025%+0.1°C)
  • Basic Instrument
  • Test Leads
  • Mains Cable
  • Multihole Insertion Tubes (8.5 mm x 2) + (6.5 mm x 1) Probes
  • Tool for Insertion Tubes
  • Spare Fuses
  • Computer Interface & “METCAL” Calibration Software
  • Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
  • Instruction Manual
  • Carrying Case

Click here to download our product catalog

Click here to download our product manual
