Economy Pressure Calibrators

Hydraulic - Handheld Type

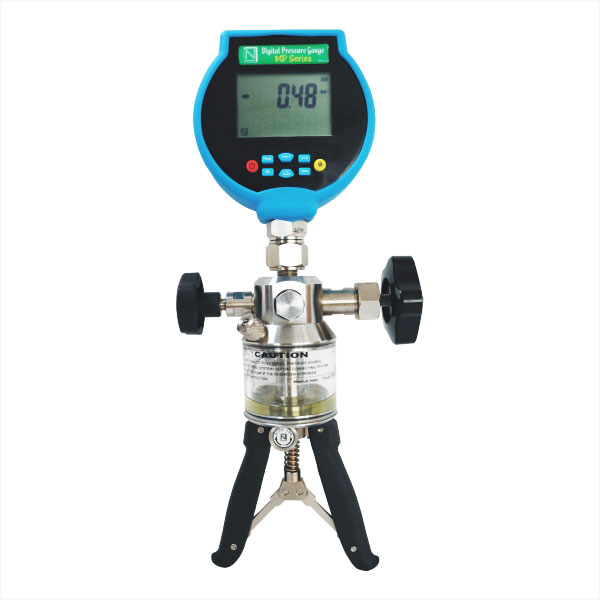

MPCE-H
  • Digital Pressure Indicator with matching Hydraulic Hand Pump with Vernier
  • Silicon Keys
  • Selectable Engineering Pressure Units
  • DC Current Measurement
  • Switch Test capability & Zero Offset facility
  • Pressure Transducer – all Media compatible with SS316
  • Low Battery Indication
  • Auto Power Off
  • Rugged Protection Holster
  • Ingress Protection Rating : IP 52

Specifications

Ideal Lab / Site Tool for checking & Calibration of Hydraulic Pressure / Differential Pressure Gauges / Switches / Transmitters / Receiver Gauges etc.

  • Ranges: 0 to 70 /100 / 200 / 250 /350 / 700 / 1000 bar
  • Accuracy: ±0.1% F.S.
  • Display Resolution: Minimum 4½ digits
  • Display: 7 Segment FSTN (Large) Display
  • Engineering Units (12): Refer Table below
  • mA Input: 0 to 25 mA DC (Active)
  • Process Connection: ½” BSP (M)
  • Over Pressure Alarm: 105% FS (Audio / Visual)
  • Battery Type & Life: 9 Volts Alkaline

7 Segment Classification of Engineering Units

Range

(bar)

 Pressure / Engineering Units – Resolution
inH2O mH2O cmH2O mmH2O inHg mmHg Mbar kPa Mpa Bar Kg/cm2 psi
70 1 0.1 — — 1 — — 1 0.001 0.01 0.01 0.1
100 — 1 — — 1 — — 1 0.01 0.1 0.1 1
200 ~ 350 — 1 — — 1 — — — 0.01 0.1 0.1 1
700 — 1 — — — — — — 0.01 0.1 0.1 1
1000 — 1 — — — — — — 0.1 1 1 1

Std. Inclusions

  • Pressure Indicator with Hand Pump
  • Test Leads & Seals Kit
  • Hose with End Fittings
  • 9V Alkaline Battery
  • Carrying Case
  • Traceable Calibration Certificate
  • Instruction Manual
  • Set of Adaptors
    BSP:
    ⅛” BSP(F) X ¼” BSP (M)
    ½” BSP(F) X ¼” BSP (M)
    ⅜” BSP(F) X ¼” BSP (M)
    NPT:
    ⅛” NPT(F) X ¼” BSP (M)
    ¼” NPT(F) X ¼” BSP (M)
    ½” NPT(F) X ¼” BSP (M)
    ⅜” NPT(F) X ¼” BSP (M)

Optional

  • Rechargeable Battery with External Charger
  • USB Interface
  • ‘Calpress’ Calibration Software with Cable
  • Water Operated Hand Pump
  • Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
