Very Low Pressure Calibrator - Nagman Instruments Consortium

Pneumatic - Table-top / Bench-top / Heavy Duty

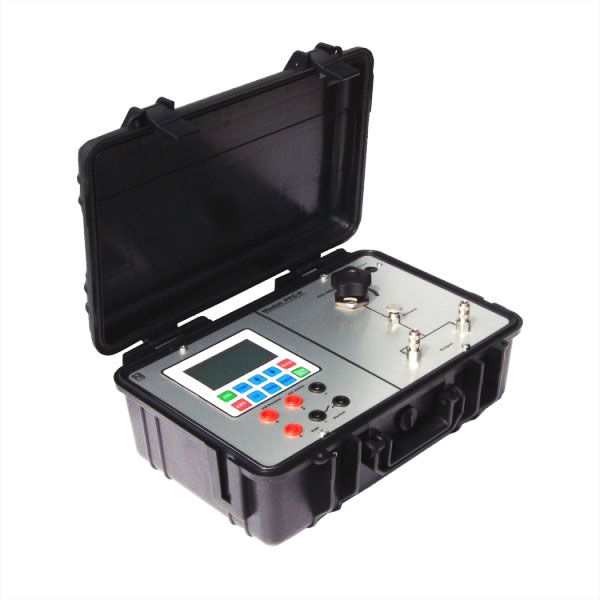

PPC-PL

Trendy, Elegant ‘Rugged’ Carry Case – Truly Portable
Light Weight & Compact
Automatic Temperature Compensation (0 to 50°C)
4.3” Colour Display with Touch Screen
Selectable Engineering Pressure Units
DC Current & Voltage Measurement
Switch Test capability & Zero Offset facility
Loop Supply provided
Audio & Visual Alarms for Over Pressure
Pressure Transducer – all Media compatible with SS316
Rechargeable Battery with ‘Low Battery’ indication
Built-in Pump & Fine Adjustment Vernier Assembly
Ingress Protection IP 65

Specifications

Ideal Lab / Site Tool for checking & Calibration of Very Low Ranges of Pressure / Differential Pressure Gauges / Transmitters / Indicators, Draft Gauges, Pressure Transducers etc.- in Industrial & Marine Applications.

Ranges: -8500 to +10000 mmH2O
Accuracy: ±0.075% F.S.
Temperature Compensation: 0 to 50°C (Automatic)
Display Resolution: Minimum 5 digits
Display: 4.3” Colour Display with Touch Screen
Engineering Units: Kg/cm2, bar, mbar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa
mA Input: 4 – 20 mA, 0 – 50 mA (Active Loop) & 0 – 25 mA (Passive Loop); Loop Supply Provided
Volt Input: 0 to 10V DC
Resolution (mA / V): 0.001
Over Pressure Alarm: 105% FS (Audio / Visual)
Instrument Dimension: 330 x 235 x 125 mm (L x B x H)
Instrument Weight (approx.): 4 Kg.

Std. Inclusions

Digital Pressure Calibrator
Test Leads & Seals Kit
Hose with End Fitting External Charger
Traceable Calibration Certificate
Instruction Manual
Computer Interface
Set of Adaptors
BSP
⅛” BSP(F) X ¼” BSP (M)
½” BSP(F) X ¼” BSP (M)
⅜” BSP(F) X ¼” BSP (M)
NPT
⅛” NPT(F) X ¼” BSP (M)
¼” NPT(F) X ¼” BSP (M)
½” NPT(F) X ¼” BSP (M)
⅜” NPT(F) X ¼” BSP (M)

Optional

“Calpress” Calibration Software with Cable
Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
