Pneumatic - Table-top / Bench-top / Heavy Duty

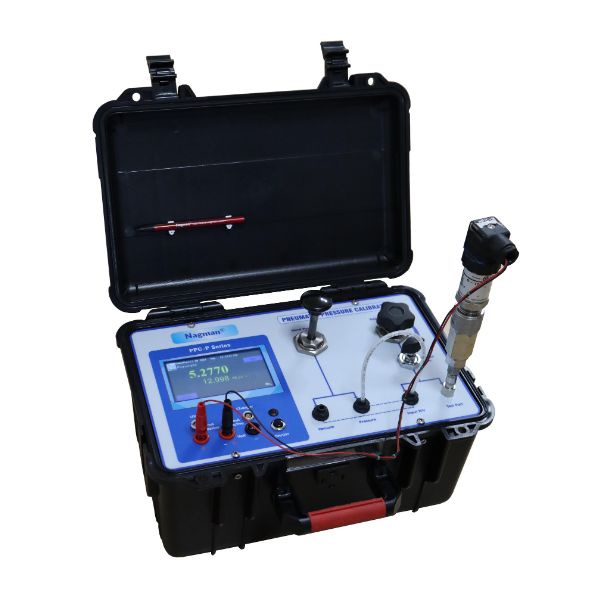

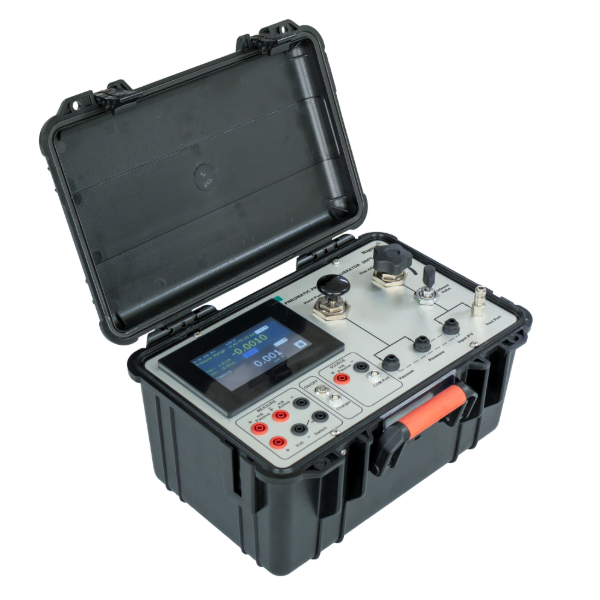

NIPC - 50
  • Pressure measurement accuracy of ± (0.025 % reading + 0.01 % FS)
  • Measure or Simulate 0 to 20 / 4 to 20 mA with Loop supply
  • Informative Color Display with touch and Easy Operation
    The full color display is very easy to read. The main Pressure indications along with Transmitter output mA or Voltage indication and % is also displayed.

Ideal Lab/Site Tool for checking & Calibration of Low Ranges of Pressure/Differential Pressure Gauges/Transmitters/Indicators, Pneumatic Receiver Gauges, Control Valves, Pressure Transducers/Loops etc.- in Industrial & Marine Applications

ModelsNIPC 50-PNIPC 50-HNIPC 50-D
Pressure Ranges-0.85 to 2 / 7 / 10 / 20 bar0 to 200 / 400 bar-0.85 to 20 bar (Pneumatic)
0 to 400 bar (Hydraulic)
ResolutionMinimum 5 digit
Accuracy±(0.025 % reading + 0.01 % FS)
Temperature
Compensation
0 to 50°C (Automatic)
Engineering unitsKg/cm2
, bar, mbar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa
mA Measure/Source0 to 25.000 mA (with loop supply); ±(0.015 % of reading + 0.002 mA)
Volts Measure0 to 30.000 V Dc; ±(0.015 % of reading + 0.002V)
Switch TestOPEN / CLOSE Capture the pressure reading
Over Pressure Alarm105% FS (Audio / Visual)
Dimension (Lx B x H)2, 7, 10 bar Models :
330 x 235 x 125 mm
20 bar Model : 330 x 235 x 200
330 x 235 x 125 mm425 x 335 x 200 mm
Weight2, 7, 10 bar – 4 Kg, 20 bar – 6 Kg6 Kg10 Kg
  • Basic Instrument
  • Test Leads & Seals Kit
  • Hoses with End Fitting
  • External Charger
  • Spare Fuses
  • “Calpress” Calibration Software
  • Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
  • Instruction Manual
  • Carrying Case
  • Set of Adaptors

The NIPC Series Pressure Calibrator is supplied with Nagman Pressure Calibration Software “Calpress “
Calibrations & Certificate generation for Documentation is controlled from a PC.

Calibration Types :

  • Auto calibration
  • Semi-automatic
  • Manual

When the calibrator has reached the desired Pressure and stability it will prompt you to type in the UUT Pressure.

Click here to download our product catalog
