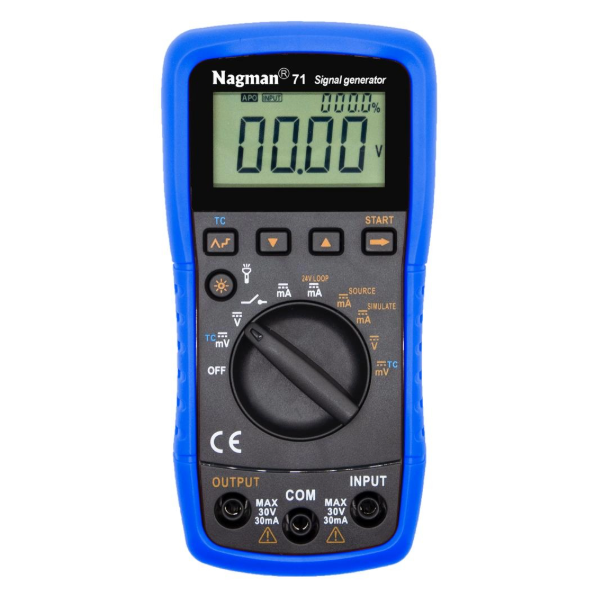

Nagman 71

Portable, Handy, Easy to carry & Sturdy Case with grip
V/mA calibrator
Simulate transmitter output
8 Thermocouple (R, S, B, K, E, J, T and N) output
Measure and source 20mA current
Output 10V DC voltage
Flash light function

Description

Input Functions (Measurement)

Functions	Range	Resolution	Basic Accuracy
DC mV	-10~100mV	100uV	±(0.2%+4)
DCV	-5~30V	10mV	±(0.2%+4
DC mA	0~22mA	0.01mA	±(0.2%+4)
Loop supply	24V	Max current 25mA	10%
Thermocouple (R, S, B, K, E, J, T and N)	0-1350℃ (K)	1℃

Output Functions (Simulation)

Functions	Range	Resolution	Basic Accuracy
DC mV output	0~110.0mV	100uV	±(0.2%+4)
DCV output	0~10.00V	10mV	±(0.2%+4)
DCA output	0~22.00mA	0.01mA	±(0.2%+4)
Simulate	0~22.00mA	0.001mA	±(0.2%+4)
Thermocouple output	R: 0-1760℃, S: 0-1760℃, B: 400-1800℃, K: 0-1350℃, E: 0-700℃, J: 0-950℃, T: 0-400℃, N: 0-1300℃.	1℃	±0.5%+3℃
Backlight	Yes
Display area	45mm x 26mm

Specification

Accuracy	0.2%
Thermocouple output	R, S, B, K, E, J, T and N
Measure and source current	20mA
Resolution	1℃
Accuracy	±0.5%+3℃
Backlight	Yes
Display area	45mm x 26mm
Power Supply	1 x 9 V Alkaline Battery
Weight	Approx. 500 G (including Batteries)
Battery	3 x 1.5V battery
Dimensions (with jacket)	147×75 ×42 mm

Std. Inclusion

Signal Generator Model Nagman 71
1.5V AA Batteries – 3 Nos.
User Manual
Test Leads
Traceable Calibration Certificate

Optional

Calibration Certificates are issued in Accordance with our Scope as granted by NABL per ISO/IEC 17025:2017 Standards
